.螺牙规格:PG、M、G、NPT，符合欧盟规范 .Thread:Metric,PG,G,NPT,EU Standard
.产品材质:尼龙66、丁腈橡胶 .Materials:PA66、NBR
.防护等级：IP54 .Protectiondegree:IP54
.温度范围: -40℃至+115℃ .Temperature Range:Min-40℃，Max: 115℃

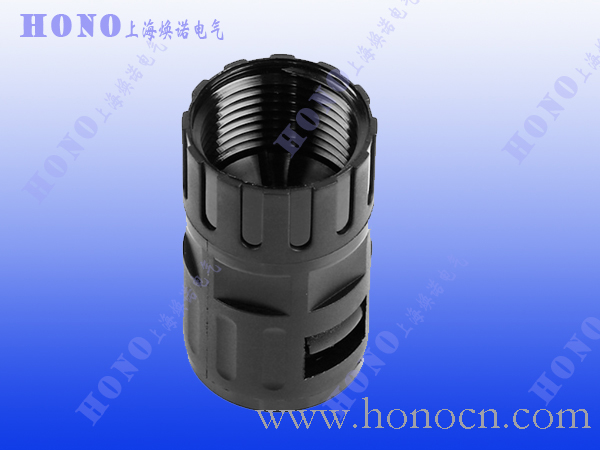

.产品特性: 内锁扣和本体特殊设计，装卸只需要插拔，无需工具
.Properties:Special design with inner locking buckle making the mounting anddismounting done by simple plugging or pulling,without using tools.
注：特殊规格需要请联系工厂 Note:The special specificationrequired,please contact the factory.
适配软管 | 型号 Part NO. | 螺纹规格 | AG外径 | AG孔径 | 螺纹长度 | 主体高度 | 包 装 |
AD(mm) | 黑色/Black | 灰色/Grey | Thread | AG (mm) | (mm) | GL(mm) | H (mm) | pcs |
10.0 | HN10.0-M10IB | HN10.0-M10IG | M10x1.5 | 10.0 | 7.0 | 12.5 | 36.0 | 50 |
HN10.0-M12IB | HN10.0-M12IG | M12x1.5 | 12.0 | 7.0 | 12.5 | 36.0 | 50 |
13.0 | HN13.0-M12IB | HN13.0-M12IG | M12x1.5 | 12.0 | 10.0 | 13.0 | 38.0 | 50 |
HN13.0-M16IB | HN13.0-M16IG | M16x1.5 | 16.0 | 10.0 | 13.5 | 38.0 | 50 |
15.8 | HN15.8-M16IB | HN15.8-M16IG | M16x1.5 | 16.0 | 12.0 | 13.5 | 41.0 | 50 |
HN15.8-M20IB | HN15.8-M20IG | M20x1.5 | 20.0 | 12.0 | 13.5 | 41.0 | 50 |
18.5 | HN18.5-M20IB | HN18.5-M20IG | M20x1.5 | 20.0 | 14.5 | 13.5 | 43.0 | 50 |
21.2 | HN21.2-M20IB | HN21.2-M20IG | M20x1.5 | 20.0 | 17.0 | 14.5 | 47.0 | 50 |
HN21.2-M25IB | HN21.2-M25IG | M25x1.5 | 25.0 | 17.0 | 14.5 | 47.0 | 50 |
25.5 | HN25.5-M25IB | HN25.5-M25IG | M25x1.5 | 25.0 | 21.0 | 15.0 | 49.0 | 25 |
28.5 | HN28.5-M25IB | HN28.5-M25IG | M25x1.5 | 25.0 | 23.5 | 16.0 | 50.0 | 25 |
HN28.5-M32IB | HN28.5-M32IG | M32x1.5 | 32.0 | 23.5 | 16.0 | 50.0 | 25 |
34.5 | HN34.5-M32IB | HN34.5-M32IG | M32x1.5 | 32.0 | 30.0 | 17.0 | 56.0 | 25 |
HN34.5-M40IB | HN34.5-M40IG | M40x1.5 | 40.0 | 30.0 | 17.5 | 56.0 | 25 |
42.5 | HN42.5-M40IB | HN42.5-M40IG | M40x1.5 | 40.0 | 36.5 | 26.0 | 65.0 | 10 |
HN42.5-M50IB | HN42.5-M50IG | M50x1.5 | 50.0 | 36.5 | 26.0 | 65.0 | 10 |
54.5 | HN54.5-M50IB | HN54.5-M50IG | M50x1.5 | 50.0 | 48.0 | 28.5 | 68.5 | 5 |
HN54.5-M63IB | HN54.5-M63IG | M63x1.5 | 63.0 | 48.0 | 28.5 | 68.5 | 5 |
10.0 | HN10.0-G1/4IB | HN10.0-G1/4IG | G1/4” | 13.1 | 7.0 | 12.5 | 36.0 | 50 |
13.0 | HN13.0-G3/8IB | HN13.0-G3/8IG | G3/8” | 16.6 | 10.0 | 13.5 | 38.0 | 50 |
15.8 | HN15.8-G3/8IB | HN15.8-G3/8IG | G3/8” | 16.6 | 12.0 | 13.5 | 41.0 | 50 |
HN15.8-G1/2IB | HN15.8-G1/2IG | G1/2” | 20.9 | 12.0 | 13.5 | 41.0 | 50 |
18.5 | HN18.5-G1/2IB | HN18.5-G1/2IG | G1/2” | 20.9 | 14.5 | 13.5 | 43.0 | 50 |
21.2 | HN21.2-G1/2IB | HN21.2-G1/2IG | G1/2” | 20.9 | 17.0 | 14.5 | 47.0 | 50 |
HN21.2-G3/4IB | HN21.2-G3/4G | G3/4” | 26.0 | 17.0 | 14.5 | 47.0 | 50 |
25.5 | HN25.5-G3/4IB | HN25.5-G3/4IB | G3/4” | 26.0 | 21.0 | 15.0 | 49.0 | 25 |
28.5 | HN28.5-G3/4IB | HN28.5-G3/4IG | G3/4” | 26.0 | 23.5 | 16.0 | 50.0 | 25 |
HN28.5-G1IB | HN28.5-G1IG | G1” | 33.0 | 23.5 | 16.0 | 50.0 | 25 |
34.5 | HN34.5-G1IB | HN34.5-G1IG | G1” | 33.0 | 30.0 | 17.5 | 56.0 | 25 |
HN34.5-G1 1/4IB | HN34.5-G1 1/4IG | G1 1/4” | 41.9 | 30.0 | 17.5 | 56.0 | 25 |
42.5 | HN42.5-G1 1/4IB | HN42.5-G1 1/4IG | G1 1/4” | 41.9 | 36.5 | 26.0 | 65.0 | 10 |
HN42.5-G1 1/2IB | HN42.5-G1 1/2IG | G1 1/2” | 47.8 | 36.5 | 26.0 | 65.0 | 10 |
54.5 | HN54.5-G1 1/2IB | HN54.5-G1 1/2IG | G1 1/2” | 47.8 | 48.0 | 28.5 | 68.5 | 5 |
HN54.5-G2IB | HN54.5-G2IG | G 2” | 60.0 | 48.0 | 28.5 | 68.5 | 5 |
