.螺纹规格:德制ＰＧ、公制M、G、NPT，符合欧盟规范
.产品材质:金属部分采用黄铜镀镍制成，夹紧件采用尼龙塑料（PA)制成，密封件和O型圈均采用丁晴橡胶（NBR)制成
.工作温度:-40℃ 至+100℃或瞬间可耐热至120℃
.防护等级：IP68
.产品特性:特殊夹紧爪与夹紧圈凹凸相扣之设计，配合迫紧头装配省时便利。夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
.Thread type:Metric、PG、G、NPT

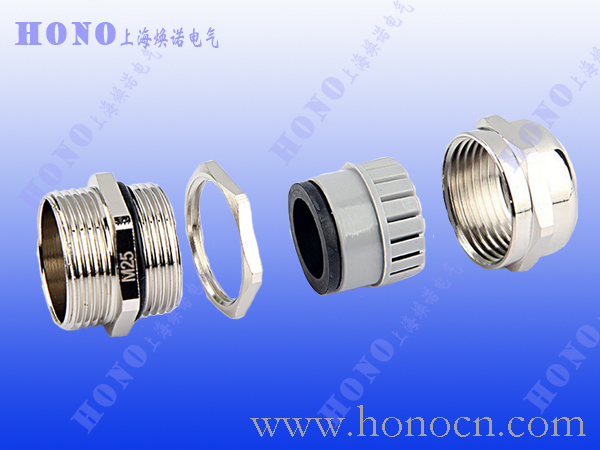

.Material:Brass:nickel plated Claw:PA Sealing andsealing ring:NBR
.Temperature Resistance:-40℃ to +100℃ ~120℃
.Protectiondegree:IP68
.Function:Extremely easy installation,simply insert cablethrough the assembled gland and tighten glandlocknut until cable is secured. Alcohol,Oil and common solvent

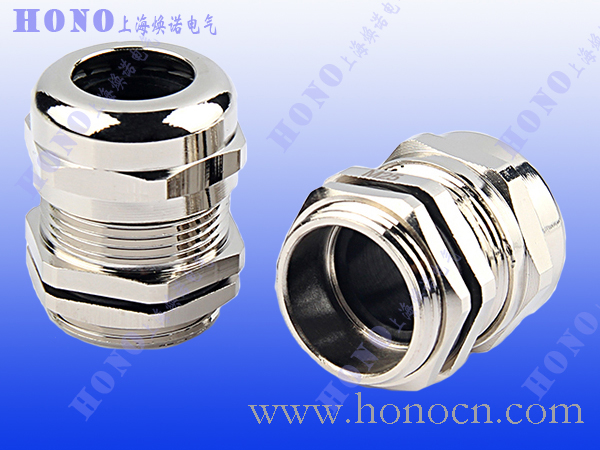

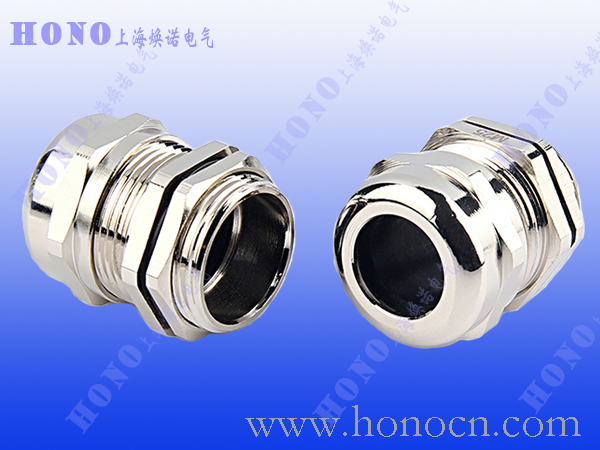

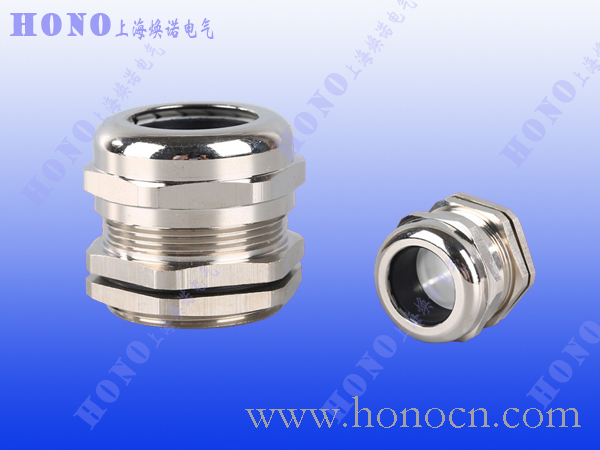

M制黄铜镀镍电缆接头
夹紧爪 | 标准螺牙 | 型号 | 适用电缆 | 螺纹外径 | 螺纹长度 | 扳手径 | 包 装 |
| Threaded | Part NO. | Cable | Thread | Thread | Spanner | Std.Pkg. |
| Entry |
| Range | O. D. | Length | Size | pcs |
| Metric | 亮镍色 |
| L2（mm) | L1(mm) | A & E(mm) |
|
| M8x1.0 | HNNBM805 | 2.0 ~ 5.0 | 8.0 | 5.0 | 12 | 50 |
M10x1.0 | HNNBM1007 | 3.0 ~ 6.5 | 10.0 | 6.5 | 14 | 50 |
M12x1.5 | HNNBM1207 | 3.0 ~ 6.5 | 12.0 | 6.5 | 14 | 50 |
HNNBM1208 | 4.0 ~ 8.0 | 12.0 | 8.0 | 17/14 | 50 |
M14x1.5 | HNNBM1408 | 4.0 ~ 8.0 | 14.0 | 8.0 | 17 | 50 |
HNNBM1410 | 5.0 ~ 10.0 | 14.0 | 8.0 | 20/17 | 50 |
M16x1.5 | HNNBM1608 | 4.0 ~ 8.0 | 16.0 | 8.0 | 18 | 50 |
HNNBM1610 | 5.0 ~ 10.0 | 16.0 | 8.0 | 20/18 | 50 |
M18x1.5 | HNNBM1810 | 5.0 ~ 10.0 | 18.0 | 8.0 | 20 | 50 |
HNNBM1812 | 6.0 ~ 12.0 | 18.0 | 8.0 | 22/20 | 50 |
M20x1.5 | HNNBM2012 | 6.0 ~ 12.0 | 20.0 | 8.0 | 22 | 50 |
HNNBM2014 | 10.0 ~ 14.0 | 20.0 | 8.0 | 24/22 | 50 |
M22x1.5 | HNNBM2214 | 10.0 ~ 14.0 | 22.0 | 8.0 | 24 | 50 |
HNNBM2216 | 11.0 ~ 16.0 | 22.0 | 8.0 | 27/24 | 50 |
M24x1.5 | HNNBM2414 | 10.0 ~ 14.0 | 24.0 | 9.0 | 24/27 | 50 |
HNNBM2416 | 11.0 ~ 16.0 | 24.0 | 9.0 | 27 | 50 |
M25x1.5 | HNNBM2514 | 10.0 ~ 14.0 | 25.0 | 9.0 | 24/27 | 25 |
HNNBM2516 | 11.0 ~ 16.0 | 25.0 | 9.0 | 27 | 25 |
HNNBM2518 | 13.0 ~ 18.0 | 25.0 | 9.0 | 30/27 | 25 |
M27x1.5 | HNNBM2718 | 13.0 ~ 18.0 | 27.0 | 9.0 | 30 | 25 |
M28x1.5 | HNNBM2818 | 13.0 ~ 18.0 | 28.0 | 9.0 | 30 | 25 |
M30x1.5 | HNNBM3018 | 13.0 ~ 18.0 | 30.0 | 9.0 | 30/32 | 25 |
M32x1.5 | HNNBM3222 | 15.0 ~ 22.0 | 32.0 | 10.0 | 35 | 25 |
HNNBM3225 | 18.0 ~ 25.0 | 32.0 | 10.0 | 40 | 25 |
M33x1.5 | HNNBM3322 | 15.0 ~ 22.0 | 33.0 | 10.0 | 35 | 25 |
M36x1.5 | HNNBM3625 | 18.0 ~ 25.0 | 36.0 | 10.0 | 40 | 25 |
M37x1.5 | HNNBM3625 | 18.0 ~ 25.0 | 37.0 | 10.0 | 40 | 25 |
M40x1.5 | HNNBM4025 | 18.0 ~ 25.0 | 40.0 | 11.0 | 40/45 | 10 |
HNNBM4030 | 22.0 ~ 30.0 | 40.0 | 11.0 | 45 | 10 |
M42x1.5 | HNNBM4230 | 22.0 ~ 30.0 | 42.0 | 11.0 | 45 | 10 |
M47x1.5 | HNNBM4733 | 25.0 ~ 33.0 | 47.0 | 11.0 | 50 | 10 |
M48x1.5 | HNNBM4833 | 25.0 ~ 33.0 | 48.0 | 11.0 | 50/52 | 10 |
M50x1.5 | HNNBM5038 | 32.0 ~ 38.0 | 50.0 | 13.0 | 50/55 | 10 |
M54x1.5 | HNNBM5438 | 32.0 ~ 38.0 | 54.0 | 13.0 | 57 | 5 |
M60x1.5 | HNNBM6044 | 37.0 ~ 44.0 | 60.0 | 14.0 | 64 | 5 |
M63x1.5 | HNNBM6344 | 37.0 ~ 44.0 | 63.0 | 14.0 | 64/68 | 5 |
M64x2 | HNNBM6444 | 37.0 ~ 44.0 | 64.0 | 14.0 | 64/68 | 5 |
M72x2 | HNNBM7252 | 42.0 ~ 52.0 | 72.0 | 16.0 | 78 | 1 |
HNNBM7258 | 48.0 ~ 58.0 | 72.0 | 16.0 | 78 | 1 |
M75x2 | HNNBM7552 | 42.0 ~ 52.0 | 75.0 | 16.0 | 78/80 | 1 |
M80x2 | HNNBM8062 | 55.0 ~ 62.0 | 80.0 | 18.0 | 88 | 1 |
M88x2 | HNNBM8870 | 65.0 ~70.0 | 88.0 | 18.0 | 94 | 1 |
M100x2 | HNNBM10084 | 78.0 ~ 84.0 | 100.0 | 20.0 | 110 | 1 |
M120x2 | HNNBM12084 | 78.0 ~ 84.0 | 120.0 | 20.0 | 110/130 | 1 |
PG制黄铜镀镍电缆接头
夹紧爪 | 标准螺牙 | 型号 | 适用电缆 | 螺纹外径 | 螺纹长度 | 扳手径 | 包 装 |
| Threaded | Part NO. | Cable | Thread | Thread | Spanner | Std.Pkg. |
| Entry |
| Range | O. D. | Length | Size | pcs |
| Metric | 亮镍色 |
| L2（mm) | L1(mm) | A & F(mm) |
|
| PG7 | HNNBPG705 | 2.0 ~ 5.0 | 12.5 | 6.5 | 14/15 | 50 |
HNNBPG707 | 3.0 ~ 6.5 | 12.5 | 6.5 | 14/15 | 50 |
HNNBPG708 | 4.0 ~ 8.0 | 12.5 | 6.5 | 17/15 | 50 |
PG9 | HNNBPG906 | 2.0 ~ 6.0 | 15.2 | 8.0 | 17/18 | 50 |
HNNBPG908 | 4.0 ~ 8.0 | 15.2 | 8.0 | 17/18 | 50 |
HNNBPG910 | 5.0 ~ 10.0 | 15.2 | 8.0 | 20/18 | 50 |
PG11 | HNNBPG1107 | 3.0 ~ 7.0 | 18.6 | 8.0 | 20/21 | 50 |
HNNBPG1110 | 5.0 ~ 10.0 | 18.6 | 8.0 | 20/21 | 50 |
HNNBPG1112 | 6.0 ~ 12.0 | 18.6 | 8.0 | 22/21 | 50 |
PG13.5 | HNNBPG1309 | 5.0 ~ 9.0 | 20.4 | 8.0 | 22/23 | 50 |
HNNBPG1312 | 6.0 ~ 12.0 | 20.4 | 8.0 | 22/23 | 50 |
HNNBPG1314 | 10.0 ~ 14.0 | 20.4 | 8.0 | 24/23 | 50 |
PG16 | HNNBPG1612 | 6.0 ~ 12.0 | 22.5 | 8.0 | 24/25 | 50 |
HNNBPG1614 | 10.0 ~ 14.0 | 22.5 | 8.0 | 24/25 | 50 |
HNNBPG1618 | 13.0 ~ 18.0 | 22.5 | 8.0 | 30/25 | 50 |
PG19 | HNNBPG1914 | 10.0 ~ 14.0 | 25.0 | 9.0 | 24/27 | 50 |
HNNBPG1916 | 10.0 ~ 16.0 | 25.0 | 9.0 | 24/27 | 50 |
PG21 | HNNBPG2116 | 9.0 ~ 16.0 | 28.3 | 9.0 | 30 | 25 |
HNNBPG2118 | 13.0 ~ 18.0 | 28.3 | 9.0 | 30 | 25 |
HNNBPG2122 | 15.0 ~ 22.0 | 28.3 | 9.0 | 35/30 | 25 |
PG25 | HNNBPG2520 | 15.0 ~ 20.0 | 32.0 | 10.0 | 35 | 25 |
HNNBPG2522 | 16.0 ~ 22.0 | 32.0 | 10.0 | 35 | 25 |
PG29 | HNNBPG2922 | 15.0 ~ 22.0 | 37.0 | 10.0 | 40 | 25 |
HNNBPG2925 | 18.0 ~ 25.0 | 37.0 | 10.0 | 40 | 25 |
HNNBPG2930 | 22.0 ~ 30.0 | 37.0 | 10.0 | 45/40 | 25 |
PG36 | HNNBPG3630 | 23.0 ~ 30.0 | 47.0 | 11.0 | 50 | 10 |
HNNBPG363 | 25.0 ~ 33.0 | 47.0 | 11.0 | 50 | 10 |
HNNBPG3638 | 32.0 ~ 38.0 | 47.0 | 11.0 | 57/50 | 10 |
PG42 | HNNBPG4235 | 30.0 ~ 35.0 | 54.0 | 13.0 | 57 | 10 |
HNNBPG4238 | 32.0 ~ 38.0 | 54.0 | 13.0 | 57 | 10 |
HNNBPG4244 | 37.0 ~ 44.0 | 54.0 | 13.0 | 64/57 | 10 |
PG48 | HNNBPG4840 | 35.0 ~ 40.0 | 59.3 | 14.0 | 64 | 10 |
HNNBPG4844 | 37.0 ~ 44.0 | 59.3 | 14.0 | 64 | 10 |
HNNBPG4852 | 42.0 ~ 52.0 | 59.3 | 14.0 | 78/64 | 10 |
PG63 | HNNBPG6352 | 42.0 ~ 52.0 | 72.0 | 16.0 | 77 | 5 |
G制黄铜镀镍电缆接头
夹紧爪 | 标准螺牙 | 型号 | 适用电缆 | 螺纹外径 | 螺纹长度 | 扳手径 | 包 装 |
| Threaded | Part NO. | Cable | Thread | Thread | Spanner | Std.Pkg. |
| Entry |
| Range | O. D. | Length | Size | pcs |
| Metric | 亮镍色 |
| L2（mm) | L1(mm) | A & E(mm) |
|
| G 1/4” | HNNBG1/407 | 3.0 ~ 6.5 | 13.1 | 6.5 | 15 | 50 |
G 3/8” | HNNBG3/808 | 4.0 ~ 8.0 | 16.6 | 8.0 | 19 | 50 |
G 1/2” | HNNBG1/212 | 6.0 ~ 12.0 | 20.9 | 8.0 | 22/23 | 50 |
G 3/4” | HNNBG3/418 | 13.0 ~ 18.0 | 26.4 | 9.0 | 30 | 25 |
G 1” | HNNBG125 | 18.0 ~ 25.0 | 33.2 | 10.0 | 40 | 25 |
G1 1/4” | HNNBG1 1/433 | 25.0 ~ 33.0 | 41.9 | 11.0 | 50 | 10 |
G1 1/2” | HNNBG1 1/238 | 32.0 ~ 38.0 | 47.8 | 12.0 | 57/55 | 10 |
G 2” | HNNBG244 | 37.0 ~ 44.0 | 59.6 | 14.0 | 65 | 5 |
G2 1/2” | HNNBG2 1/252 | 42.0 ~ 52.0 | 75.1 | 16.0 | 78 | 5 |
G 3” | HNG370 | 65.0 ~ 70.0 | 87.8 | 18.0 | 94 | 5 |
NPT制黄铜镀镍电缆接头
夹紧爪 | 标准螺牙 | 型号 | 适用电缆 | 螺纹外径 | 螺纹长度 | 扳手径 | 包 装 |
| Threaded | Part NO. | Cable | Thread | Thread | Spanner | Std.Pkg. |
| Entry |
| Range | O. D. | Length | Size | pcs |
| Metric | 亮镍色 |
| L2（mm) | L1(mm) | A & E(mm) |
|
| NPT 1/4” | HNNBNPT1/407 | 3.0 ~ 6.5 | 13.6 | 6.5 | 15 | 50 |
NPT 3/8” | HNNBNPT3/808 | 4.0 ~ 8.0 | 17.0 | 8.0 | 19 | 50 |
NPT 1/2” | HNNBNPT1/212 | 6.0 ~ 12.0 | 21.2 | 8.0 | 22 | 50 |
NPT 3/4” | HNNBNPT3/418 | 13.0 ~ 18.0 | 26.5 | 9.0 | 30 | 25 |
NPT 1” | HNNBNPT125 | 18.0 ~ 25.0 | 33.2 | 10.0 | 40 | 25 |
NPT1 1/4” | HNNBNPT1 1/433 | 25.0 ~ 33.0 | 41.9 | 11.0 | 50 | 10 |
NPT1 1/2” | HNNBNPT1 1/238 | 32.0 ~ 38.0 | 48.0 | 12.0 | 57/55 | 10 |
NPT 2” | HNNBNPT244 | 37.0 ~ 44.0 | 60.0 | 14.0 | 65 | 5 |
NPT2 1/2” | HNNBNPT2 1/252 | 42.0 ~ 52.0 | 72.6 | 16.0 | 78 | 5 |
NPT 3” | HNNPT370 | 65.0 ~ 70.0 | 88.6 | 18.0 | 94 | 5 |
